SCEDC Tutorial#

Noisepy is a python software package to process ambient seismic noise cross correlations. This tutorial aims to introduce the use of noisepy for a toy problem on the SCEDC data. It can be ran locally or on the cloud.

The data is stored on AWS S3 as the SCEDC Data Set: https://scedc.caltech.edu/data/getstarted-pds.html

First, we install the noisepy-seis package

# Uncomment and run this line if the environment doesn't have noisepy already installed:
# ! pip install noisepy-seis

Warning: NoisePy uses obspy as a core Python module to manipulate seismic data. If you use Google Colab, restart the runtime now for proper installation of obspy on Colab.

Import necessary modules#

Then we import the basic modules

%load_ext autoreload
%autoreload 2
from noisepy.seis import cross_correlate, stack_cross_correlations, __version__       # noisepy core functions
from noisepy.seis.io.asdfstore import ASDFCCStore, ASDFStackStore          # Object to store ASDF data within noisepy
from noisepy.seis.io.s3store import SCEDCS3DataStore # Object to query SCEDC data from on S3
from noisepy.seis.io.channel_filter_store import channel_filter
from noisepy.seis.io.datatypes import CCMethod, ConfigParameters, FreqNorm, RmResp, StackMethod, TimeNorm        # Main configuration object
from noisepy.seis.io.channelcatalog import XMLStationChannelCatalog        # Required stationXML handling object
import os
import shutil
from datetime import datetime, timezone
from datetimerange import DateTimeRange

from noisepy.seis.io.plotting_modules import plot_all_moveout

print(f"Using NoisePy version {__version__}")

path = "./scedc_data"

os.makedirs(path, exist_ok=True)
cc_data_path = os.path.join(path, "CCF")
stack_data_path = os.path.join(path, "STACK")
S3_STORAGE_OPTIONS = {"s3": {"anon": True}}
/opt/hostedtoolcache/Python/3.10.17/x64/lib/python3.10/site-packages/noisepy/seis/io/utils.py:13: TqdmExperimentalWarning: Using `tqdm.autonotebook.tqdm` in notebook mode. Use `tqdm.tqdm` instead to force console mode (e.g. in jupyter console)
  from tqdm.autonotebook import tqdm
Using NoisePy version 0.1.dev1

We will work with a single day worth of data on SCEDC. The continuous data is organized with a single day and channel per miniseed (https://scedc.caltech.edu/data/cloud.html). For this example, you can choose any year since 2002. We will just cross correlate a single day.

# SCEDC S3 bucket common URL characters for that day.
S3_DATA = "s3://scedc-pds/continuous_waveforms/"
# timeframe for analysis
start = datetime(2002, 1, 1, tzinfo=timezone.utc)
end = datetime(2002, 1, 2, tzinfo=timezone.utc)
timerange = DateTimeRange(start, end)
print(timerange)
2002-01-01T00:00:00+0000 - 2002-01-02T00:00:00+0000

The station information, including the instrumental response, is stored as stationXML in the following bucket

S3_STATION_XML = "s3://scedc-pds/FDSNstationXML/CI/"            # S3 storage of stationXML

Ambient Noise Project Configuration#

We prepare the configuration of the workflow by declaring and storing parameters into the ConfigParameters() object and/or editing the config.yml file.

# Initialize ambient noise workflow configuration
config = ConfigParameters() # default config parameters which can be customized

Customize the job parameters below:

config.start_date = start
config.end_date = end
config.acorr_only = False # only perform auto-correlation or not
config.xcorr_only = True # only perform cross-correlation or not

config.inc_hours = 24 # INC_HOURS is used in hours (integer) as the
        #chunk of time that the paralelliztion will work.
        # data will be loaded in memory, so reduce memory with smaller
        # inc_hours if there are over 400+ stations.
        # At regional scale for SCEDC, we can afford 20Hz data and inc_hour
        # being a day of data.

# pre-processing parameters
config.sampling_rate = 20  # (int) Sampling rate in Hz of desired processing (it can be different than the data sampling rate)
config.single_freq = False
config.cc_len = 3600  # (float) basic unit of data length for fft (sec)
config.step = 1800.0  # (float) overlapping between each cc_len (sec)

config.ncomp = 3  # 1 or 3 component data (needed to decide whether do rotation)

config.stationxml = False  # station.XML file used to remove instrument response for SAC/miniseed data
      # If True, the stationXML file is assumed to be provided.
config.rm_resp = RmResp.INV  # select 'no' to not remove response and use 'inv' if you use the stationXML,'spectrum',

############## NOISE PRE-PROCESSING ##################
config.freqmin,config.freqmax = 0.05,2.0  # broad band filtering of the data before cross correlation
config.max_over_std  = 10  # threshold to remove window of bad signals: set it to 10*9 if prefer not to remove them

################### SPECTRAL NORMALIZATION ############
config.freq_norm = FreqNorm.RMA  # choose between "rma" for a soft whitening or "no" for no whitening. Pure whitening is not implemented correctly at this point.
config.smoothspect_N = 10  # moving window length to smooth spectrum amplitude (points)
    # here, choose smoothspect_N for the case of a strict whitening (e.g., phase_only)

#################### TEMPORAL NORMALIZATION ##########
config.time_norm = TimeNorm.ONE_BIT # 'no' for no normalization, or 'rma', 'one_bit' for normalization in time domain,
config.smooth_N = 10  # moving window length for time domain normalization if selected (points)

############ cross correlation ##############
config.cc_method = CCMethod.XCORR # 'xcorr' for pure cross correlation OR 'deconv' for deconvolution;
    # FOR "COHERENCY" PLEASE set freq_norm to "rma", time_norm to "no" and cc_method to "xcorr"

# OUTPUTS:
config.substack = True  # True = smaller stacks within the time chunk. False: it will stack over inc_hours
config.substack_windows = 1  # how long to stack over (for monitoring purpose)
    # if substack=True, substack_windows=2, then you pre-stack every 2 correlation windows.
    # for instance: substack=True, substack_windows=1 means that you keep ALL of the correlations
    # if substack=False, the cross correlation will be stacked over the inc_hour window

### For monitoring applications ####
## we recommend substacking ever 2-4 cross correlations and storing the substacks
# e.g.
# config.substack = True
# config.substack_windows = 4

config.maxlag = 200  # lags of cross-correlation to save (sec)
# For this tutorial make sure the previous run is empty
#os.system(f"rm -rf {cc_data_path}")
if os.path.exists(cc_data_path):
    shutil.rmtree(cc_data_path)

Step 1: Cross-correlation#

In this instance, we read directly the data from the scedc bucket into the cross correlation code. We are not attempting to recreate a data store. Therefore we go straight to step 1 of the cross correlations.

We first declare the data and cross correlation stores

config.networks = ["CI"]
config.stations = ["RPV", "SVD", "BBR"]
config.channels = ["BH?"]

catalog = XMLStationChannelCatalog(S3_STATION_XML, storage_options=S3_STORAGE_OPTIONS) # Station catalog
raw_store = SCEDCS3DataStore(S3_DATA, catalog,
                             channel_filter(config.networks, config.stations, config.channels),
                             timerange, storage_options=S3_STORAGE_OPTIONS) # Store for reading raw data from S3 bucket
cc_store = ASDFCCStore(cc_data_path) # Store for writing CC data

get the time range of the data in the data store inventory

span = raw_store.get_timespans()
print(span)
[2002-01-01T00:00:00+0000 - 2002-01-02T00:00:00+0000]

Get the channels available during a given time spane

channel_list=raw_store.get_channels(span[0])
print(channel_list)
2025-04-17 02:03:11,228 140158689430400 INFO utils.log_raw(): TIMING:  0.611 secs for Listing 877 files from s3://scedc-pds/continuous_waveforms/2002/2002_001/
2025-04-17 02:03:11,247 140158689430400 INFO utils.log_raw(): TIMING:  0.019 secs for Init: 1 timespans and 9 channels
2025-04-17 02:03:11,432 140157109929664 INFO channelcatalog._get_inventory_from_file(): Reading StationXML file s3://scedc-pds/FDSNstationXML/CI/CI_SVD.xml
2025-04-17 02:03:11,632 140157091055296 INFO channelcatalog._get_inventory_from_file(): Reading StationXML file s3://scedc-pds/FDSNstationXML/CI/CI_BBR.xml
2025-04-17 02:03:11,635 140156994586304 INFO channelcatalog._get_inventory_from_file(): Reading StationXML file s3://scedc-pds/FDSNstationXML/CI/CI_RPV.xml
2025-04-17 02:03:15,433 140158689430400 INFO s3store.get_channels(): Getting 9 channels for 2002-01-01T00:00:00+0000 - 2002-01-02T00:00:00+0000
[CI.BBR.BHE, CI.BBR.BHN, CI.BBR.BHZ, CI.RPV.BHE, CI.RPV.BHN, CI.RPV.BHZ, CI.SVD.BHE, CI.SVD.BHN, CI.SVD.BHZ]

Perform the cross correlation#

The data will be pulled from SCEDC, cross correlated, and stored locally if this notebook is ran locally. If you are re-calculating, we recommend to clear the old cc_store.

cross_correlate(raw_store, config, cc_store)
2025-04-17 02:03:15,481 140158689430400 INFO correlate.cross_correlate(): Starting Cross-Correlation with 4 cores
2025-04-17 02:03:15,482 140158689430400 INFO s3store.get_channels(): Getting 9 channels for 2002-01-01T00:00:00+0000 - 2002-01-02T00:00:00+0000
2025-04-17 02:03:15,487 140158689430400 INFO utils.log_raw(): TIMING CC Main:  0.005 secs for get 9 channels
2025-04-17 02:03:15,488 140158689430400 INFO correlate.cc_timespan(): Checking for stations already done: 6 pairs
2025-04-17 02:03:15,490 140158689430400 INFO utils.log_raw(): TIMING CC Main:  0.002 secs for check for 3 stations already done (warm up cache)
2025-04-17 02:03:15,491 140158689430400 INFO utils.log_raw(): TIMING CC Main:  0.001 secs for check for stations already done
2025-04-17 02:03:15,491 140158689430400 INFO correlate.cc_timespan(): Still need to process: 3/3 stations, 9/9 channels, 6/6 pairs for 2002-01-01T00:00:00+0000 - 2002-01-02T00:00:00+0000
2025-04-17 02:03:16,497 140158689430400 INFO correlate._filter_channel_data(): Filtered to 9/9 channels with sampling rate >= 20.0
2025-04-17 02:03:16,498 140158689430400 INFO utils.log_raw(): TIMING CC Main:  1.007 secs for Read channel data: 9 channels
2025-04-17 02:03:17,194 140156591933120 INFO noise_module.preprocess_raw(): removing response for CI.SVD..BHE | 2002-01-01T00:00:00.048083Z - 2002-01-01T23:59:59.998083Z | 20.0 Hz, 1728000 samples using inv
2025-04-17 02:03:17,209 140156554184384 INFO noise_module.preprocess_raw(): removing response for CI.BBR..BHN | 2002-01-01T00:00:00.025573Z - 2002-01-01T23:59:59.975573Z | 20.0 Hz, 1728000 samples using inv
2025-04-17 02:03:17,220 140156755510976 INFO noise_module.preprocess_raw(): removing response for CI.BBR..BHZ | 2002-01-01T00:00:00.025573Z - 2002-01-01T23:59:59.975573Z | 20.0 Hz, 1728000 samples using inv
2025-04-17 02:03:17,222 140156774385344 INFO noise_module.preprocess_raw(): removing response for CI.RPV..BHE | 2002-01-01T00:00:00.010758Z - 2002-01-01T23:59:59.960758Z | 20.0 Hz, 1728000 samples using inv
2025-04-17 02:03:17,224 140156963129024 INFO noise_module.preprocess_raw(): removing response for CI.BBR..BHE | 2002-01-01T00:00:00.025573Z - 2002-01-01T23:59:59.975573Z | 20.0 Hz, 1728000 samples using inv
2025-04-17 02:03:17,238 140156793259712 INFO noise_module.preprocess_raw(): removing response for CI.RPV..BHN | 2002-01-01T00:00:00.010758Z - 2002-01-01T23:59:59.960758Z | 20.0 Hz, 1728000 samples using inv
2025-04-17 02:03:17,242 140156390606528 INFO noise_module.preprocess_raw(): removing response for CI.SVD..BHZ | 2002-01-01T00:00:00.048083Z - 2002-01-01T23:59:59.998083Z | 20.0 Hz, 1728000 samples using inv
2025-04-17 02:03:17,250 140156573058752 INFO noise_module.preprocess_raw(): removing response for CI.SVD..BHN | 2002-01-01T00:00:00.048083Z - 2002-01-01T23:59:59.998083Z | 20.0 Hz, 1728000 samples using inv
2025-04-17 02:03:26,090 140156793259712 INFO noise_module.preprocess_raw(): removing response for CI.RPV..BHZ | 2002-01-01T00:00:00.010758Z - 2002-01-01T23:59:59.960758Z | 20.0 Hz, 1728000 samples using inv
2025-04-17 02:03:54,711 140158689430400 INFO utils.log_raw(): TIMING CC Main: 38.213 secs for Preprocess: 9 channels
2025-04-17 02:03:54,712 140158689430400 INFO correlate.check_memory(): Require  0.11gb memory for cross correlations
2025-04-17 02:03:55,606 140158689430400 INFO utils.log_raw(): TIMING CC Main:  0.893 secs for Compute FFTs: 9 channels
2025-04-17 02:03:55,608 140158689430400 INFO correlate.cc_timespan(): Starting CC with 6 station pairs
2025-04-17 02:03:57,214 140158689430400 INFO utils.log_raw(): TIMING CC Main:  1.606 secs for Correlate and write to store
2025-04-17 02:03:57,363 140158689430400 INFO utils.log_raw(): TIMING CC Main: 41.882 secs for Process the chunk of 2002-01-01T00:00:00+0000 - 2002-01-02T00:00:00+0000
2025-04-17 02:03:57,367 140158689430400 INFO utils.log_raw(): TIMING CC Main: 41.886 secs for Step 1 in total with 4 cores

The cross correlations are saved as a single file for each channel pair and each increment of inc_hours. We now will stack all the cross correlations over all time chunk and look at all station pairs results.

Step 2: Stack the cross correlation#

We now create the stack stores. Because this tutorial runs locally, we will use an ASDF stack store to output the data. ASDF is a data container in HDF5 that is used in full waveform modeling and inversion. H5 behaves well locally.

Each station pair will have 1 H5 file with all components of the cross correlations. While this produces many H5 files, it has come down to the noisepy team’s favorite option:

  1. the thread-safe installation of HDF5 is not trivial

  2. the choice of grouping station pairs within a single file is not flexible to a broad audience of users.

# open a new cc store in read-only mode since we will be doing parallel access for stacking
cc_store = ASDFCCStore(cc_data_path, mode="r")
stack_store = ASDFStackStore(stack_data_path)

Configure the stacking#

There are various methods for optimal stacking. We refern to Yang et al (2022) for a discussion and comparison of the methods:

Yang X, Bryan J, Okubo K, Jiang C, Clements T, Denolle MA. Optimal stacking of noise cross-correlation functions. Geophysical Journal International. 2023 Mar;232(3):1600-18. https://doi.org/10.1093/gji/ggac410

Users have the choice to implement linear, phase weighted stacks pws (Schimmel et al, 1997), robust stacking (Yang et al, 2022), acf autocovariance filter (Nakata et al, 2019), nroot stacking. Users may choose the stacking method of their choice by entering the strings in config.stack_method.

If chosen all, the current code only ouputs linear, pws, robust since nroot is less common and acf is computationally expensive.

config.stack_method = StackMethod.LINEAR
method_list = [method for method in dir(StackMethod) if not method.startswith("__")]
print(method_list)
['ALL', 'AUTO_COVARIANCE', 'LINEAR', 'NROOT', 'PWS', 'ROBUST', 'SELECTIVE']
cc_store.get_station_pairs()
[(CI.SVD, CI.BBR),
 (CI.BBR, CI.RPV),
 (CI.SVD, CI.SVD),
 (CI.SVD, CI.RPV),
 (CI.RPV, CI.RPV),
 (CI.BBR, CI.BBR)]
stack_cross_correlations(cc_store, stack_store, config)
2025-04-17 02:03:57,487 140158689430400 INFO stack.initializer(): Station pairs: 6
2025-04-17 02:04:00,924 140658889276288 INFO stack.stack_store_pair(): Stacking CI.BBR_CI.BBR/2002-01-01T00:00:00+0000 - 2002-01-02T00:00:00+0000
2025-04-17 02:04:00,924 139726206450560 INFO stack.stack_store_pair(): Stacking CI.SVD_CI.BBR/2002-01-01T00:00:00+0000 - 2002-01-02T00:00:00+0000
2025-04-17 02:04:00,927 139892720384896 INFO stack.stack_store_pair(): Stacking CI.BBR_CI.RPV/2002-01-01T00:00:00+0000 - 2002-01-02T00:00:00+0000
2025-04-17 02:04:00,955 139726055013248 INFO stack.stack_store_pair(): Stacking CI.RPV_CI.RPV/2002-01-01T00:00:00+0000 - 2002-01-02T00:00:00+0000
2025-04-17 02:04:00,958 140658889276288 INFO utils.log_raw(): TIMING:  0.030 secs for loading CCF data
2025-04-17 02:04:00,967 140658889276288 INFO utils.log_raw(): TIMING:  0.009 secs for stack/rotate all station pairs (CI.BBR, CI.BBR)
2025-04-17 02:04:00,972 139892720384896 INFO utils.log_raw(): TIMING:  0.041 secs for loading CCF data
2025-04-17 02:04:00,976 139726206450560 INFO utils.log_raw(): TIMING:  0.046 secs for loading CCF data
2025-04-17 02:04:00,986 139892720384896 INFO utils.log_raw(): TIMING:  0.014 secs for stack/rotate all station pairs (CI.BBR, CI.RPV)
2025-04-17 02:04:00,989 139726206450560 INFO utils.log_raw(): TIMING:  0.013 secs for stack/rotate all station pairs (CI.SVD, CI.BBR)
2025-04-17 02:04:00,990 140658889276288 INFO utils.log_raw(): TIMING:  0.023 secs for writing stack pair (CI.BBR, CI.BBR)
2025-04-17 02:04:00,991 139726055013248 INFO utils.log_raw(): TIMING:  0.031 secs for loading CCF data
2025-04-17 02:04:00,991 140658889276288 INFO stack.stack_store_pair(): Stacking CI.SVD_CI.RPV/2002-01-01T00:00:00+0000 - 2002-01-02T00:00:00+0000
2025-04-17 02:04:01,001 139726055013248 INFO utils.log_raw(): TIMING:  0.010 secs for stack/rotate all station pairs (CI.RPV, CI.RPV)
2025-04-17 02:04:01,025 139726055013248 INFO utils.log_raw(): TIMING:  0.023 secs for writing stack pair (CI.RPV, CI.RPV)
2025-04-17 02:04:01,026 139726055013248 INFO stack.stack_store_pair(): Stacking CI.SVD_CI.SVD/2002-01-01T00:00:00+0000 - 2002-01-02T00:00:00+0000
2025-04-17 02:04:01,040 140658889276288 INFO utils.log_raw(): TIMING:  0.048 secs for loading CCF data
2025-04-17 02:04:01,053 139892720384896 INFO utils.log_raw(): TIMING:  0.067 secs for writing stack pair (CI.BBR, CI.RPV)
2025-04-17 02:04:01,055 140658889276288 INFO utils.log_raw(): TIMING:  0.015 secs for stack/rotate all station pairs (CI.SVD, CI.RPV)
2025-04-17 02:04:01,059 139726055013248 INFO utils.log_raw(): TIMING:  0.031 secs for loading CCF data
2025-04-17 02:04:01,065 139726055013248 INFO utils.log_raw(): TIMING:  0.007 secs for stack/rotate all station pairs (CI.SVD, CI.SVD)
2025-04-17 02:04:01,066 139726206450560 INFO utils.log_raw(): TIMING:  0.076 secs for writing stack pair (CI.SVD, CI.BBR)
2025-04-17 02:04:01,079 139726055013248 INFO utils.log_raw(): TIMING:  0.014 secs for writing stack pair (CI.SVD, CI.SVD)
2025-04-17 02:04:01,101 140658889276288 INFO utils.log_raw(): TIMING:  0.046 secs for writing stack pair (CI.SVD, CI.RPV)
2025-04-17 02:04:01,650 140158689430400 INFO utils.log_raw(): TIMING:  4.164 secs for step 2 in total

QC_1 of the cross correlations for Imaging#

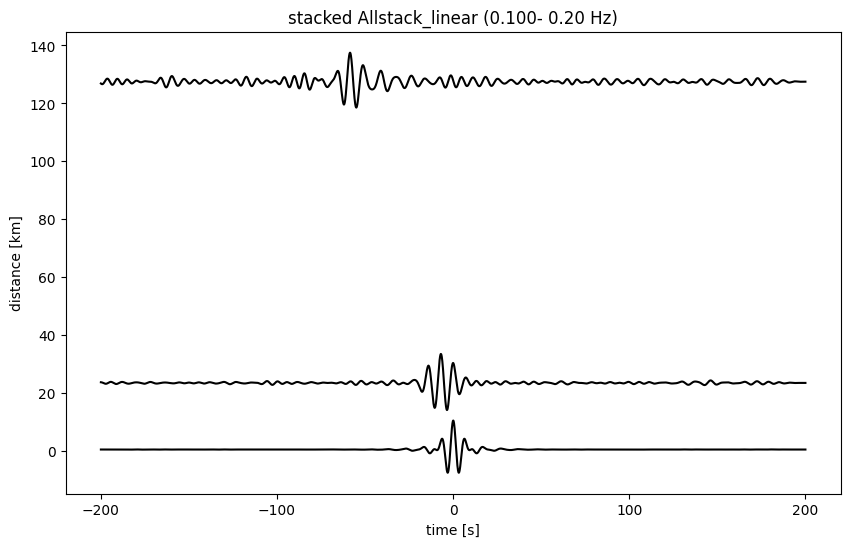

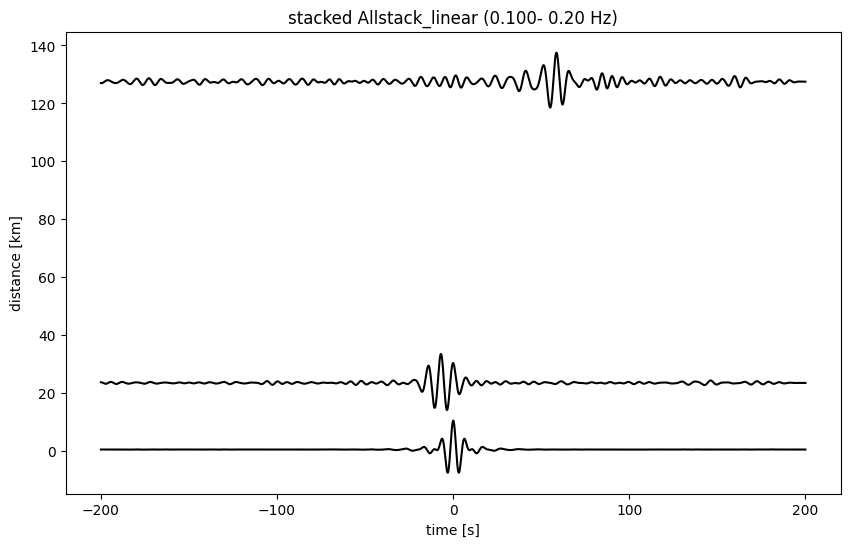

We now explore the quality of the cross correlations. We plot the moveout of the cross correlations, filtered in some frequency band.

cc_store.get_station_pairs()
[(CI.SVD, CI.BBR),
 (CI.BBR, CI.RPV),
 (CI.SVD, CI.SVD),
 (CI.SVD, CI.RPV),
 (CI.RPV, CI.RPV),
 (CI.BBR, CI.BBR)]
pairs = stack_store.get_station_pairs()
print(f"Found {len(pairs)} station pairs")
sta_stacks = stack_store.read_bulk(timerange, pairs) # no timestamp used in ASDFStackStore
Found 6 station pairs
2025-04-17 02:04:01,844 140158689430400 INFO utils.log_raw(): TIMING:  0.142 secs for loading 6 stacks
plot_all_moveout(sta_stacks, 'Allstack_linear', 0.1, 0.2, 'ZZ', 1)
2025-04-17 02:04:01,870 140158689430400 INFO plotting_modules.plot_all_moveout(): Plottting: Allstack_linear, 6 station pairs
200 8001
_images/e50ecd34facb331301f56933ca06b66d072a34061dd4ce8f8a7f28c332091ce5.png
